OddMix VACUUM TUBE - 12AX4GTA |

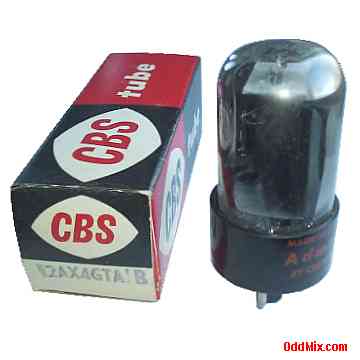

12AX4GTA Half-Wave Rectifier CBS Admiral Electronic Vacuum Tube
This is a genuine, vintage Admiral CBS 12AX4GTA electronic tube. This is collector's special, antique vacuum tube. It is possible that Admiral tubes were supplied to CBS, or vice versa. These tubes typically used as half-wave damper rectifiers to provide multi kilovolt anode voltage for television (TV), photomultiplier and special purpose circuits. Excellent for restoration projects, high voltage experimentation or to set up a private vacuum tube museum. It is a collectible tube, unused, boxed, excellent condition. Only one available.
Features: • 12AX4GTA Half Wave Rectifier • CBS Admiral • Quality Made in USA • High Voltage Damper Rectifier • Heater: 12.6 V, 0.6 A • Plate: 4,400 Vmax (4.4 KiloVolts) • Current: 750 mA maximum • Base: 8-pin octal, glass Notes: • NOS - New Old Stock tube • Original box • Unused - Price: $15 - One available • S/H included within continental US |
12AX4GTA Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Electrode | - | NC | Cathode | - | Anode | - | Heater | Heater |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
