OddMix IconOddMix ELECTRIC MOTOR - AC

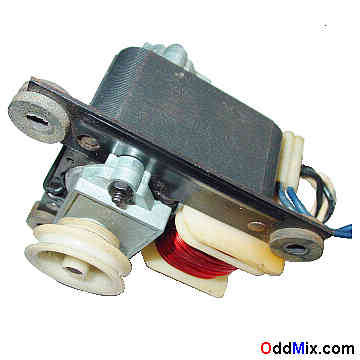

Motor AC Bomax 174926 Transformer 117 VAC 60 Hz Induction Shaded Pole

This is a powerful AC shaded pole, Bomax, Model 174926, single RPM, standard, replacement, 117 VAC, 60 Hz, asynchronous induction motor with an integrated transformer winding. The motor is built to operate continously at a 117 VAC line voltage. It has a two wires main connection. The extra terminals may be useable like a transformer to power some additional control or other circuit. For a replacement, show-and-tell, or for some projects, this may be a nice motor to have.
Bomax 174926 Transformer Motor 117 VAC 60 Hz Induction Shaded Pole [11 KB]
SPECIAL DIFFICULT TO FIND REPAIR PART

Features:

Induction Motor AC Shaded Pole Transformer
Bomax 174926
Voltage: 117 VAC 0.75 A 4 Wire terminals
Motor Resistance DC: 5.4 Ohms black - white
Motor Resistance DC: 3.1 Ohms blue - blue
Sleeve perma oil bearings
Size: 86 W, 97 H, 77 L [MM] with shaft
Shaft Size: 5 Dia, 10 L [MM]
Weight: 1055 [Grams]

Notes:

Used Price: $40 One available
S/H included within continental US
