OddMix IconOddMix TRANSISTOR - 2N2219

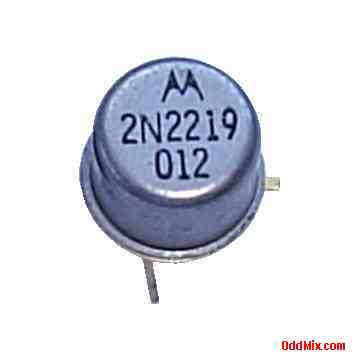

2N2219 Transistor NPN Motorola Silicon Planar Low-Power Metal TO-5 Package

These are some rare find of genuine Motorola made 2N2219 Silicon High-Voltage NPN Transistors in a Metal TO-5 Package in new unused condition. These used high reliability units has gold plated wire leads. These transistors are made for High Speed Switching and Small Signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCBO=30 V, capable to handle a 0.8 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=250 MHz and they have a 0.8 Watts maximum power dissipation and a minimum DC beta of 100 with a collector current of 150 mA. These are real hard to find vintage collector's choice semiconductors. First come first serve.
2N2219 Low-Power Silicon NPN Planar Transistor Motorola Metal TO-5 Package [5 KB]
SEMICONDUCTOR TECHNICAL HISTORICAL

Features:

2N2219 NPN Silicon Transistor - Vintage
• MFG: Motorola Solid State
• High Speed Switch - Industrial Commercial
• TO-5 metal package - Gold plated wire leads
• VCBO=30 V, IC=0.8 A, PT=0.8 W
• hFEmin=100 @ IB=150 mA, FTmin=250 MHz
• Planar construction for low noise and leakage
• Low output capacitance 8 pF max
• Low saturation voltage • High Switching Speed

Notes:

• Used vintage units • Short leads, about 0.25 inch long
• Price: $10 Each • 20 Available
S/H included within continental US
