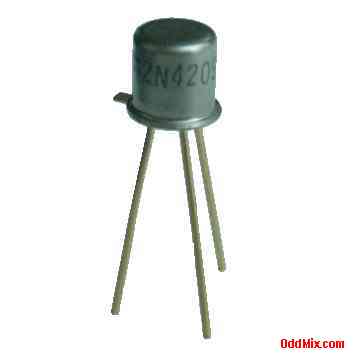

2N4209 Transistor P-N-P Motorola High Speed Switch Silicon Vintage Metal TO-18

These are some rare, genuine Motorola made 2N4209 silicon, high speed switch, P-N-P transistors in a plastic TO-18 Package in new unused condition. These units has gold plated short wire leads. These unused vintage units made in the seventies. These transistors are made for high speed switch and small signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCE=15 V, capable to handle a 0.02 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=40 MHz and they have a 0.3 Watt maximum power dissipation and a minimum DC beta of 50 with a collector current of 10 mA, Cob=3.5pF. These units are real hard to find vintage collector's choice semiconductors. First come first serve supply is limited.

---

SEMICONDUCTOR TECHNICAL HISTORICAL Features: • 2N4209 PNP Silicon Transistor - Vintage • MFG: Motorola Co. • TO-18 Metal package • High speed switch - industrial, commercial • Gold plated case and wire leads • VCE=15 V, IC=0.05 Amax, PD=0.3 W • hFEmin=50 @ IC=10 mA, FTmin=850 MHz • Planar construction for low noise and leakage • Low output capacitance Cob=3.5 pF max • Low saturation voltage - High Switching Speed Notes: • Unused, factory fresh, new, vintage units • Price: $15 each • Limited Availability • S/H included within continental US

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
