OddMix IconOddMix DIODE - FDH600

FDH600 Diode Fairchild Ultra Fast Silicon Planar DO-35 Hermetic Glass Package

These are some rare genuine FDH600 Ultra Fast Diodes in a DO-35 hermetic glass package in new, unused condition. These factory diodes are made for use in commercial and industrial applications. They are diffused silicon planar epitaxial solid junction construction for ultra high speed recovery and have low forward voltage. These diodes have a WIV=50 V (Working Inverse Voltage), a VF=1.0 V max (Forward Voltage) @ 200 mA continuous forward current and an Operating Junction Temperature Range: -65 to 175 C max. These are hard to find vintage, collector's choice semiconductors. First come first serve supply is limited.

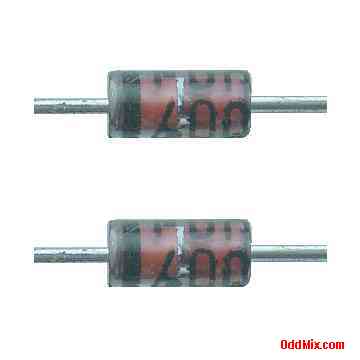

Fairchild FDH600 Ultra Fast Diode Silicon Planar DO-35 Hermetic Glass Package [5 KB]
SEMICONDUCTOR TECHNICAL HISTORICAL

Features:

FDH600 Ultra Fast Diode
MFG: Fairchild Corporation
Commercial, Industrial, Military Applications
DO-35 hermetic glass package
Diffused silicon planar epitaxial
IO=200 mAavg, IFSM=4.0 Amax @1 uS, TA=70 C
WIV=50 V, VF=1.0 V @ 200 mA
C=2.5 pF, trr=4.0 nS max @ If=10mA
Temperature Operating: -65 to 175 C Junction

Notes:

New, Unused, Factory Original vintage units
Price: $ 10 Each diode Limited Availability
S/H included within continental US
