Logitech 6174Z-1012C Transformer Assembly High Voltage HV TV Computer Power

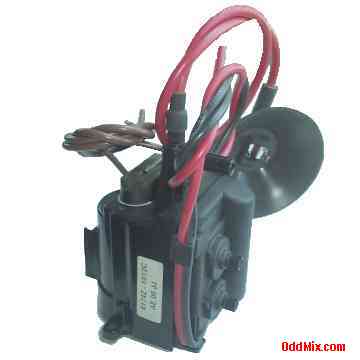

This is a Logitech [LG] high voltage multi kV TV computer monitor high frequency, HV power supply transformer assembly - 6174Z-1012C AE 05 JJ with cables. Additional numbers on this unit: DJ12B KD28, F892B-1BS, F892B-1BS and on the core C407. Not only this assembly has a high frequency high power ferrite core that is difficult to find, but it has the complete encapsulated transformer, rectifier and voltage divider with it. This is a good replacement or useable for a power or hobby project item. The single turn filament winding (brown) is useful to find all voltage and turn ratios. Or just add a few turns and drive it direct with a power transistor to generate very high voltages. First come first serve only one available!

---

SPECIAL HIGH VOLTAGE TRANSFORMER Features: • High Voltage Transformer Assembly • MFG: LG Logitech • Numbers: 6174Z-1012C AE 05 JJ • Other Numbers: DJ12B KD28 • Other No: F892B-1BS Core:C407 • Two Focus Controls • High Voltage 10-25 kV - Approximate • Size: 50 x 65 x 105 [mm] - approximately • Weight: 310 [gm] - with cable Notes: • Used, works • Price: $40 • One available • S/H included within continental USA

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
