Zenith High Voltage TV Power Transformer HV Assembly 1X2C Diode Vacuum Tube

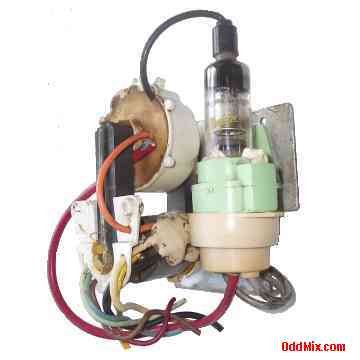

This is a Zenith high voltage multi kV TV high frequency power supply transformer assembly with a 1X2C high voltage rectifier tube. Not only this assembly has a difficult to find high frequency high power ferrite core, but it has a separate encapsulated high voltage coil, lower voltage coils and a vacuum tube rectifier. This is a good replacement or useable as a power or hobby project item. The single turn filament winding (brown) is useful to find all other voltage and turn ratios. Or just add a few turns and drive it direct with a power transistor to generate very high voltages. First come first serve only one available!

---

SPECIAL HIGH VOLTAGE TRANSFORMER Features: • High Voltage Transformer Assembly • MFG: Zenith - Made in USA • Two Coil Assembly • 1X2C Diode Vacuum Tube • High Voltage 10-25 kV - Approximate • Size: 90 x 125 x 65 [mm] - approximately • Weight: 368 [gm] - with cable Notes: • Used, useable as HV supply • Price: $35 - One available • S/H included within continental USA

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
