Orion 22 Three Tube Radio 1937 Vintage Set Restoration Data Picture Schematic

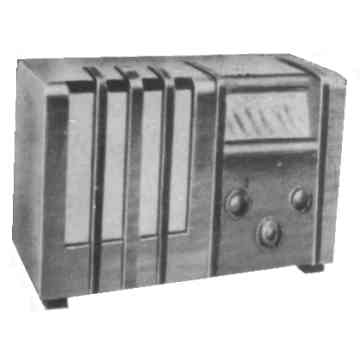

In spite its imposing look, this Orion 22 was a low price, simple, basic receiver, a three tube, three band radio set from 1937. It was a reflex feedback audion receiver without IF frequency amplification. The first tube is used as RF [Radio Frequency] and as AF [Audio Frequency] amplifier. Designed to be used with a good long antenna on MW [Medium Wave] SW [Short Wave] and LW [Long Wave] it was a very dependale set. The radio is housed in a large stylish enclosure and it has an illuminated wide colored glass scale with the European city names marked for each strong station.
Orion 22 Three Tube Radio 1937 Vintage Set Restoration Data Picture Schematic [7 KB]
