Standard 722 Prince 3 Tube Radio 1937 Vintage Set Restoration Data Picture Schematic

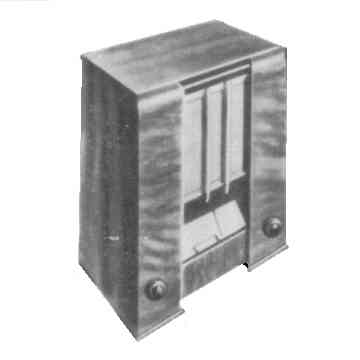

In spite its imposing look, this Standard 722 Prince was a low price, simple, basic receiver, a three tube, three band radio set from 1937. It was a reflex feedback audion receiver without IF frequency amplification. The first tube is used as RF [Radio Frequency] and as AF [Audio Frequency] amplifier. Designed to be used with a good long antenna on MW [Medium Wave] SW [Short Wave] and LW [Long Wave] it was a very dependale set. The radio is housed in a large stylish enclosure and it has an illuminated wide colored glass scale with the European city names marked for each strong station.
Standard 722 Prince 3 Tube Radio 1937 Vintage Set Restoration Data Picture Schematic [6 KB]
