Orion 56 Three Tube Audion Radio 1938 Vintage Restoration Data Picture Schematic

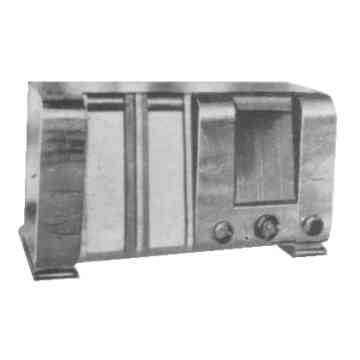

In spite its imposing look, this is a Orion 56 was a low price, simple basic receiver, a three tube, three band radio set from 1938. It was a reflex feedback audion straight receiver without IF frequency amplification. The first tube is used as RF [Radio Frequency] and AF [Audio Frequency] amplifier. Designed to be used with a good long antenna on MW [Medium Wave] SW [Short Wave] and LW [Long Wave] it was a very dependale set. The radio is housed in a a large stylish enclosure and an illuminated wide colored glass scale with the European city names marked for each strong station.
Orion 56 Three Tube Audion Radio 1938 Vintage Restoration Data Picture Schematic [5 KB]
