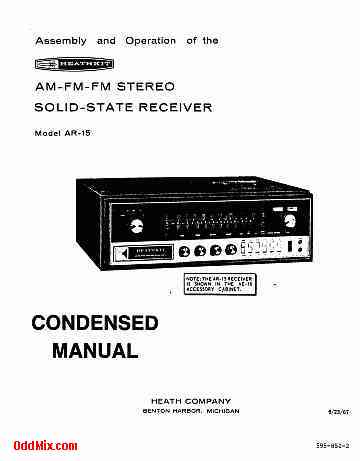

Heathkit AR-15 AM-FM Stereo Solid State Receiver Operations Manual Schematic

This is a difficult to find Assembly and Operation, Condensed Instruction Manual for the Heath AR-15 AM-FM Stereo Receiver. Manual is absolutely required to repair or recondition these great receivers. Manual includes the radio's design description, construction help, circuit diagrams and operating instructions. It provides a valuable learning tool for anyone wishes to learn how to design audio or radio equipments.
Heathkit AR-15 AM-FM Stereo Solid State Receiver Operations Manual Schematic [12 KB]
SPECIAL - HARD TO FIND ITEM

Features:

Heathkit AR-15 AM-FM Stereo Receiver Manual
Manual is without the step-by-step assembly pages
• Schematic Diagrams
• Parts Lists
• Tuneup Procedures
• Additional valuable design information
151 Pages - © 1967 - Technical section only
• Size: 8.5 W x 11 H [in]

Notes:

• Price: E-Mail for price and availability
