Manual IM-71-D High Voltage Adjustable Lambda Regulated Power Supplies Instruction

This is a difficult to find Instruction Manual for the Lambda IM-71-D high voltage adjustable DC (Direct Current) and AC (Alternating Current) power supply, a vacuum tube type classic instrument. This short manual describe proper use and maintainance for this powerful device. This booklet helps to understand how the 0 to 500 volt adjustable DC and fixed AC power supply works and it includes some of the instrument's design description, construction help, circuit diagram and operating instructions. First come first serve only one available.

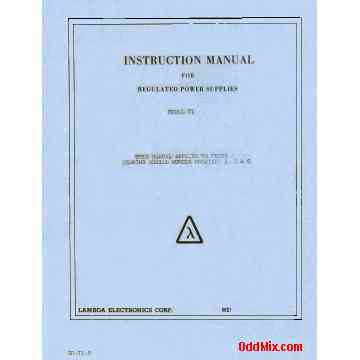

IM-71-D High Voltage Adjustable Lambda Regulated Power Supplies Instruction Manual [5 KB]


Lambda IM-71-D High Voltage Power Supply
Instruction Manual
Design, Calibration, Operation
Circuit description, Parts Lists
Alignment with instruments, specification
Valuable design information
24 Pages, many foldouts
8.5 W x 11 H x 0.15 D [in]

There will be NO shipping until Dec 20
Do NOT order if shipping delay is a problem!


Price: $10 Only one available
S/H included within continental US
