Book PACO Model V-70 VOM Assembly Operating Manual Vacuum Tube Voltmeter Kit

This is a difficult to find Assembly and Operating Manual for the PACO Model V-70 Vacuum Tube Voltmeter Kit, a two vacuum tube version of the classic AC line powered VOM. This well written and illustrated manual is absolutely required to repair or recondition these fine tube type instruments. This booklet helps to understand how the meter works and it includes the instrument's design description, construction help, circuit diagram and operating instructions. First come first serve only one available.

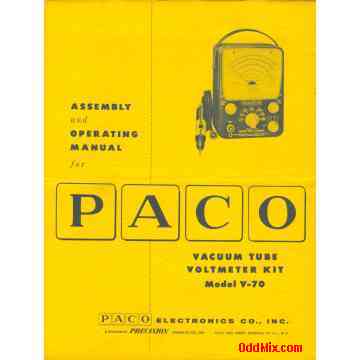

PACO Model V-70 VOM Assembly Operating Manual Vacuum Tube Voltmeter Kit [8 KB]
SPECIAL - HARD TO FIND ITEM

Features:

PACO Model V-70 Vacuum Tube Voltmeter
Assembly notes with schematic diagram
Design, Calibration, Operation
Circuit description, Parts Lists
Alignments, specification
Valuable design information
40 Pages
8.5 W x 11 H x 0.2 D [in]

There will be NO shipping until Dec 20
Do NOT order if shipping delay is a problem!

Notes:

Price: $12
