Philips 939 Top Super Eight Tube Radio 1939 Vintage Restoration Data Picture Schematic

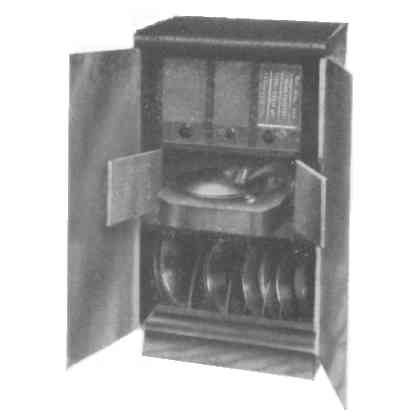

This Philips 939 Super was a classy, high price, top of the line World Receiver, an eight tube, multiple band radio set from 1939. It had an IF section using a just fashionable, new 473 kHz for the IF [Intermediate Frequency] frequency. This set had a built in turntable with automatic relay driven on-off circuit. LW [Long Wave], MW [Medium Wave] and SW [Short Wave] was, and still is, a standard mode of operation on European radios. The radio is housed in a large stylish wooden furniture type enclosure and an illuminated wide colored glass scale with the European city names marked for each strong station.
Philips 939 Top Super Eight Tube Radio 1939 Vintage Restoration Data Picture Schematic [7 KB]
