5V4G Full-Wave Vacuum Rectifier RCA Radiotron Electronic Vintage Tube Data Picture

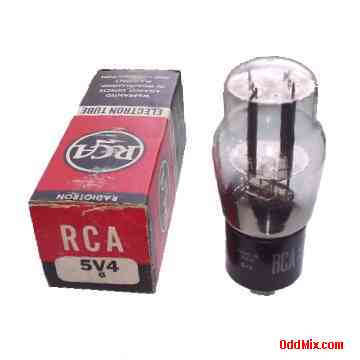

This is a genuine, vintage RCA 5V4G Radiotron Full-Wave Vacuum Rectifier electronic tube shown with it's original box. The 5V4G was developed for use in power supplies, amplifiers and other electronic equipments requiring high dc voltage. Excellent as a replacement for older tube type oscilloscopes, amplifiers, other equipments and for those antique radio or television restoration projects or to set up a private vacuum tube museum. Tube data for reference only - no longer available!
5V4G Full-Wave Vacuum Rectifier RCA Radiotron Electronic Glass Octal Vintage Tube [7 KB]
REFERENCE PAGE - INFORMATION ONLY

Vacuum Electron Tube Base 4R [2 KB]
Features:

5V4G Full-Wave Rectifier
MFG: RCA
For Power Supplies
Historical collectible
Base: 8-pin glass octal - 5L
Filament: 5 V, 2 A AC or DC
Plate: 550 VACmax, 450 mADCmax - Per Plate
Plate: 1550 VDCmax, 1.4 ADCmax - Per Plate

Notes:
No longer available
Data For Reference Only
5V4G Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrodes Shield Heater - Anode 1 - Anode 2 - Htr Cath
