6AB4 High-Mu Triode Amplifier Converter Sylvania Electronic Vacuum Tube Reference

This is an original Sylvania 6AB4 High-Mu Triode electronic tube. This tube is useable as push-pull cathode-drive amplifier and frequency converter in VHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. For reference only - no longer available!

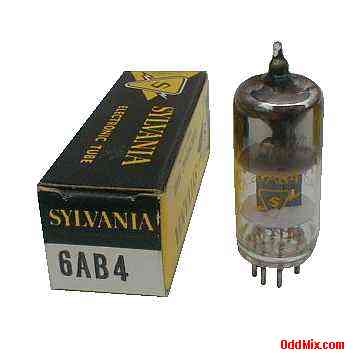

6AB4 High-Mu Triode Amplifier Converter Miniature Sylvania Electronic Vacuum Tube [10 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

6AB4 High-Mu Triode - Discontinued tube
Class A amplifier, Oscillator
MFG: Sylvania - High quality Made in USA
Heater: 6.3 V, 0.3 A
Plate: 250 Vmax - 10 mAmax
Base: 7-pin miniature, all glass

Notes:

No longer Available
Data For Reference Only
6AB4 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Anode - Heater Heater - Grid-1 Cathode
