6AH4GT Vacuum Tube Low-Mu Triode Sylvania Power Amp Octal Electronic Reference

This is an original Sylvania 6AH4GT Low-Mu Triode electronic tube. This tube was developed for a vertical deflection amplifier in TV sets. A Low-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers and for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. Tube data for reference only - no longer available!

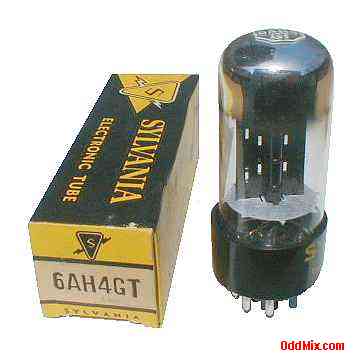

6AH4GT Low-Mu Triode Power Amplifier Octal Sylvania Electronic Vacuum Tube [11 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

6AH4GT Low-Mu Triode - Discontinued Tube
• Vertical Deflection Amplifier
• MFG: Sylvania - High quality Made in USA
• Heater: 6.3 V, 0.75 A
• Plate: 500 Vmax
• Cathode Current: 60 mAmax
• Base: 8-pin octal

Notes:

No longer Available
Data For Reference Only
6AH4GT Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrodes Grid-1 Heater - - Anode - Heater Cathode
