6AU5GT Beam Power Vacuum Tube RCA Radiotron Amp Class A Electron Reference

This is a genuine, original 6AU5GT RCA Radiotron Beam Power electron tube. Developed for horizontal deflection Class A amplifier use in TV receivers. Excellent for replacement, antique radio, instrument restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. No longer Available - Data For Reference Only!

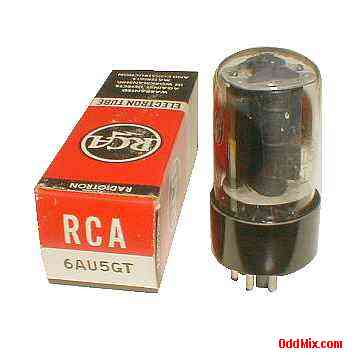

6AU5GT Beam Power Amplifier Class A Octal RCA Radiotron Electron Vacuum Tube [11 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

6AU5GT Beam Power Tube
Horizontal deflection, Audio amplifier
MFG: RCA Radiotron - High quality Made in USA
Heater: 6.3 V, 1.25 A
Plate: 550 Vmax - 10 Wmax - Class A
Base: 8-pin octal

Notes:

No longer Available
Data For Reference Only
6AU5GT Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrodes Grid-1 Heater Cath G3 - Anode - Heater Grid-2
