6DR7 High-Mu Triode, Low-Mu Triode Amplifier Radio TV Sylvania Vacuum Tube Reference

The 6DR7 High-Mu Triode, Low-Mu Triode is used as combined vertical-deflection oscillator and vertical-deflection amplifier. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for antique radio or television restoration, projects, or to set up a private vacuum tube museum. This tube is no longer available!

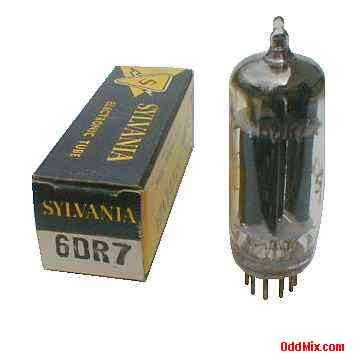

6DR7 Dual Triode Oscillator Amplifier Radio TV Sylvania Electronic Vacuum Tube [9 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

6DR7 High-Mu Triode, Low-Mu Triode
MFG: Sylvania - High quality Made in USA
Oscillator, mixer, IF, video, amplifier
Heater: 6.3 V, 0.9 A
Anode: 250 Vmax, 1.4 mAmax - unit one
Anode: 150 Vmax, 35 mAmax - unit two
Base: 9-pin miniature, all glass

Notes:

No longer Available
Data For Reference Only
1976 Price: $6.15 - Sylvania List - May 1, 1976
6DR7 Noval 9-Pin, Miniature, All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode 2 Grid-2 Grid-2 Heater Heater Anode 1 Grid-1 Cathode 1 Cathode 2
