6SL7GT Electron Tube Tung-Sol High-Mu Twin Triode Vintage Reference Page

The Tung-Sol 6SL7GT High-Mu Twin Triode is used for phase inverter or resistance coupled amplifier in radio equipment. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for those antique radio restoration projects or to set up a private vacuum tube museum. Tube data for reference only - no longer available!

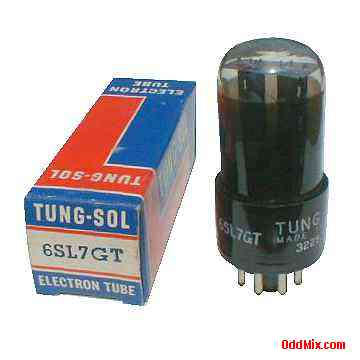

6SL7GT Tung-Sol High-Mu Twin Triode Vintage Electron Tube (10 KB)
REFERENCE PAGE - INFORMATION ONLY

Features:

6SL7GT High-Mu Twin Triode Electron Tube
MFG: Tung-Sol - High quality Made in USA
Oscillator, Mixer, Amplifier
Heater: 6.3 V, 0.3 A
Anode: 300 Vmax, 2.3 mAmax
Base: 8-pin octal

Notes:

No longer Available
Data For Reference Only
1976 Price: $7.65 - Sylvania List - May 1, 1976
6SL7GT Octal 8-Pin Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrodes Grid T2 Anode T2 Cathode T2 Grid T1 Anode T1 Cathode T1 Heater Heater
