117Z3 Full-Wave Rectifier HV Tung-Sol Electronic Tube Vintage Reference

This is a genuine, vintage, discontinued Tung-Sol 117Z3 Full-Wave Rectifier electronic tube. These 7-pin miniature all glass tubes typically used to provide anode voltage for radios, television (TV), photomultipliers, instruments and special purpose circuits. Useful for antique radio restoration projects or to set up a private vacuum tube museum. For reference only - no longer available!

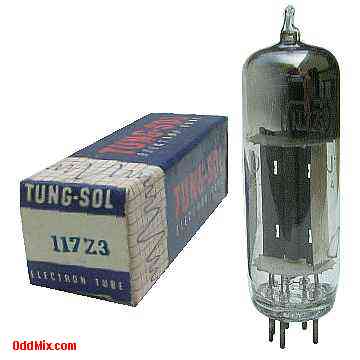

117Z3 Tung-Sol Full-Wave Rectifier High Voltage HV Electronic Tube Vintage Part [11 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

117Z3 Half Wave Rectifier Tube
• Tung-Sol • High quality Made in USA
• High Voltage Rectifier
• Heater: 117 V, 0.04 A
• Plate: 330 Vmax, 540 mAmax
• Base: 7-pin miniature, all glass

Notes:

1976 Price: $7.80 - Sylvania List - May 1, 1976
No longer Available
Data For Reference Only
117Z3 Miniature 7-pin Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode IC NC Heater Heater Anode Cathode NC
NC=NCection, IC=Internal Connection - Do NOT Use
