12AT6 Twin Diode High-Mu Triode RCA Radiotron Electron Tube Reference Information

This is a genuine, original RCA Radiotron 12AT6 Twin Diode, High-Mu Triode electronic tube. Developed for combined detector, amplifier and avc use in automobile and ac operated receivers. Excellent for antique radio restoration projects or to set up a private vacuum tube museum. This tube is no longer available!

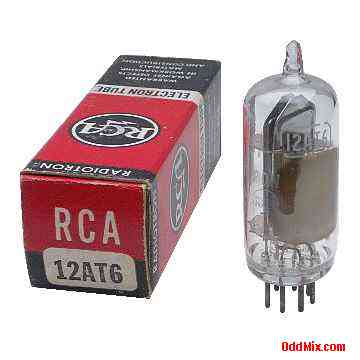

12AT6 RCA Radiotron Twin Diode, High-Mu Triode Electron Tube [11 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

12AT6 Twin Diode, High-Mu Triode
MFG: RCA Radiotron Quality Made in USA
Power Amplifier, Oscillator
Heater: 12.6 V, 0.15 A
Plate Voltage: 300 Vmax, 0.5 Wmax - Triode Class A
Base: 7-pin miniature, all glass

Notes:

1976 Price: $3.75 - Sylvania List - May 1, 1976
No longer Available
Data For Reference Only
12AT6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Grid-1 Cathode Heater Heater Anode D1 Anode D2 Anode T
