EC92 High-Mu HF Triode Telefunken Vacuum Electronic Tube Amplifier Oscillator

This is an original Telefunken EC92 High-Mu H.F. Triode electronic tube. Subtitutes are the 6AB4 and - except for the filament voltage the - PC92. This tube is useable as push-pull cathode-drive amplifier and frequency converter in VHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators, multi-vibrators, blocking ocsillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. One available!

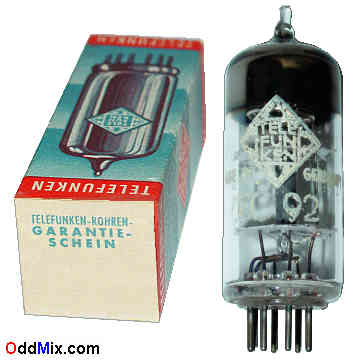

EC92 High-Mu HF Triode Amplifier Oscillator Telefunken Vacuum Electronic Tube [14 KB]


EC92 High-Mu HF Triode
Amplifier, Oscillator, Mixer
MFG: Telefunken - Made in Germany quality
Heater: 6.3 V, 300 mA Subtitute: 6AB4
Plate: 250 Vmax - 12 mAmax
Base: 7-pin miniature, all glass


NOS - [New Old Stock] tube Without box
Unused - Price: $30 - One available
S/H included within continental US
EC92 Miniature 7-Pin All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Anode - Heater Heater - Grid-1 Cathode
