PC86 High-Mu Triode Orega Vacuum Tube UHF Amplifier Oscillator Converter

This is an original Orega PC86 High-Mu UHF Triode electronic tube. Nearest good subtitute is the EC86, 4CM4. This tube is useable as grounded grid UHF amplifier, oscillator and frequency converter in VHF, UHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. One available!

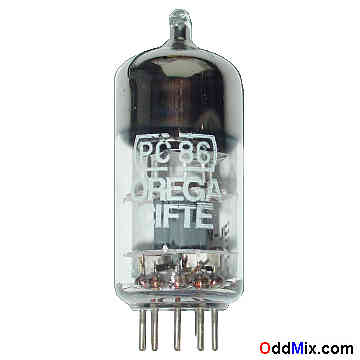

PC86 High-Mu Triode UHF Amplifier Oscillator Converter Orega Vacuum Electronic Tube [9 KB]


PC86 High-Mu UHF Triode - RF tube
Class-A Amplifier, Oscillator, Mixer
MFG: Orega - High quality Made in Europe
Heater: 3.8 V, 300 mA
Plate: 220 Vmax - 12 mAmax
Base: 9-pin, all glass, noval


NOS - [New Old Stock] tube Without box
Unused - Price: $20 - One available
S/H included within continental US
PC86 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode Grid Cathode Heater Heater Grid Cathode Grid Anode
