PC86 High-Mu Triode Valvo Vacuum Tube UHF Amplifier Oscillator Converter

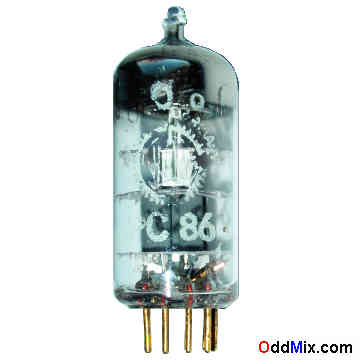

This is an original Valvo PC86 High-Mu UHF Triode electronic tube. Nearest good subtitute is the EC86, 4CM4. This tube is useable as grounded grid UHF amplifier, oscillator and frequency converter in VHF, UHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. One available!
Features: • PC86 High-Mu UHF Triode - RF tube • Class A Amplifier, Oscillator, Converter • MFG: Valvo - High quality Made in Germany • Heater: 3.8 V, 300 mA • Plate: 220 Vmax - 12 mAmax • Base: 9-pin, all glass, noval Notes: • NOS - [New Old Stock] tube • Without box • Unused - Price: $20 - One available • S/H included within continental US |
PC86 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode | Grid | Cathode | Heater | Heater | Grid | Cathode | Grid | Anode |
