PC92 High-Mu HF Triode Amplifier Oscillator Converter Hoges Electronic Vacuum Tube

This is an original Hoges PC92 High-Mu H.F. Triode electronic tube. Good subtitute - except for the filament voltage - are the EC92 and 6AB4. This tube is useable as push-pull cathode-drive amplifier and frequency converter in VHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators, multi-vibrators, blocking ocsillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. One available!

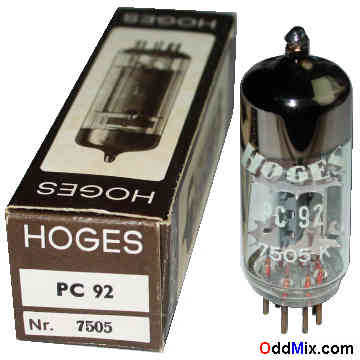

PC92 High-Mu HF Triode Amplifier Oscillator Converter Hoges Electronic Vacuum Tube [14 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

PC92 High-Mu RF Triode
Class A Amplifier, Oscillator, Mixer
MFG: Hoges - High quality Made in Germany
Heater: 3.1 V, 300 mA
Plate: 250 Vmax - 12 mAmax
Base: 7-pin miniature, all glass

Notes:

NOS - [New Old Stock] - Original box
Unused - Price: $40 - One available
S/H included within continental US
PC92 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Anode - Heater Heater - Grid-1 Cathode
