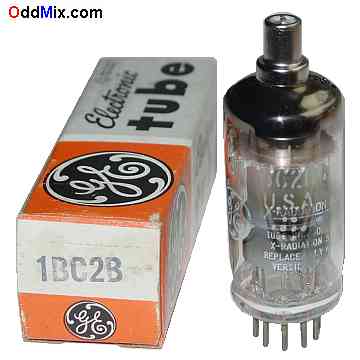

1BC2B Half-Wave High Voltage Diode Vacuum Rectifier GE Electronic Tube
This is an original GE 1BC2B Electronic Tube. This tube is used for high-voltage low-current half-wave vacuum pulse rectifier applications. Excellent collectible and for antique radio or television restoration projects, experimentation with high voltage, X-Ray Emitter or to set up a private vacuum tube museum. It is a NOS tube [New Old Stock], unused, boxed, good condition.
Features: • 1BC2B Half-Wave Vacuum Rectifier • MFG: GE • High quality Made in USA • Pulsed Vacuum, RF Rectifier • X-Ray Emitter • Heater: 1.25 V, 0.2 A • Plate: 26,000 Vmax, 50 mAmax • Base: 8-pin octal with cap Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $12 • One available • S/H included within continental US |
1BC2B Noval Vacuum Tube 9-pin Miniature Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | CAP |
Electrode | Heater, IS | IC | IC | IC | Heater | IC | - | IC | IC | Anode |
IS=Internal Short, IC=Internal Connection - Do NOT Use
