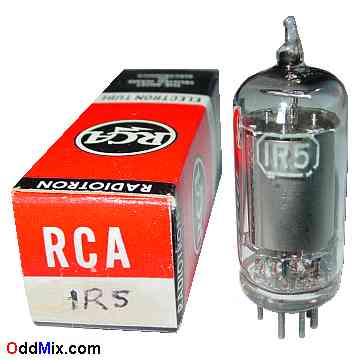

1R5 Pentagrid Converter RCA Radiotron Electronic Miniature Vacuum Tube
This is an original, discontinued RCA Radiotron 1R5 electronic tube. These miniature type tubes were designed as RF mixer and amplifier stage in many lightweight, compact, portable, battery operated equipment. Excellent part for antique radio, instrument or equipment restoration. Useful as a replacement, for electrometer circuits or a foundation for a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, in a standard box, in excellent condition.
Features: • 1R5 Pentagrid Converter • MFG: RCA Radiotron • Quality Made in USA • RF, AF, Mixer/Oscillator, Amplifier - Electrometer • Heater: 1.4 V, 50 mA • Plate: 90 Vmax, 1.6 mAmax • Base: 7-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $50 • One available • S/H included within continental US |
1R5 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections F=Filament, G=Grid
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Electrode | F-, G5 | Anode | G2, G4 | Grid 1 | F1, G3 | Grid 3 | F+ |
