1X2B Pulsed Half Wave 20 KV Rectifier X-Ray emitter Sylvania Electronic Vacuum Tube

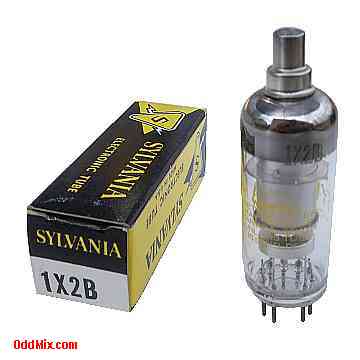

This is a genuine Sylvania 1X2B electronic tube in it's original box. These 9-pin miniature all glass tubes typically used as pulsed half wave rectifiers to provide multi kilovolt anode voltage for television (TV), X-Ray emitter, photomultiplier and special purpose circuits. Excellent for various restoration projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, and kept for all these years in mint condition.
Features: • 1X2B Half Wave Rectifier • MFG: Sylvania • Quality Made in USA • High Voltage Rectifier • X-Ray Emitter • Heater: 1.25 V, 200 mA • Collectible • Plate Voltage: 22,000 Vmax • Plate Current: 0.5 mA typical, 45mAmax • Base: 9-pin noval, all glass, miniature Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $15 • One available • S/H included within continental US |
1X2B Noval 9-pin Miniature Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | CAP |
Electrode | FS | F | IC | FS | F | FS | IC | FS | FS | Anode |
F=Filament, FS=Filament shield, IC=Internal Connection - Do NOT Use!
