OddMix IconOddMix VACUUM TUBE - 1X2B

1X2B Pulsed Half Wave 20 KV Rectifier X-Ray emitter Sylvania Electronic Vacuum Tube

This is a genuine Sylvania 1X2B electronic tube. These 9-pin miniature all glass tubes typically used as pulsed half wave rectifiers to provide multi kilovolt anode voltage for television (TV), X-Ray emitter, photomultiplier and special purpose circuits. Excellent for various restoration projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, in good condition.

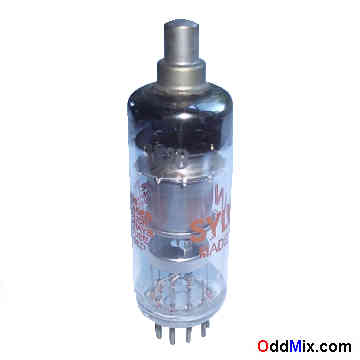

1X2B Pulsed Half Wave High Voltage 20 KV Rectifier Sylvania Electronic Vacuum Tube [7 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

1X2B Half Wave Rectifier
MFG: Sylvania Quality Made in USA
High Voltage Rectifier X-Ray Emitter
Heater: 1.25 V, 200 mA Collectible
Plate Voltage: 22,000 Vmax
Plate Current: 0.5 mA typical, 45mAmax
Base: 9-pin noval, all glass, miniature

Notes:

NOS - [New Old Stock] tube Without Box
Unused Price: $10 One available
S/H included within continental US
1X2B Noval 9-pin Miniature Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9 CAP
Electrode FS F IC FS F FS IC FS FS Anode
F=Filament, FS=Filament shield, IC=Internal Connection - Do NOT Use!
