3BN6 Beam Amplifier Limiter Miniature Glass Sylvania Electronic Vacuum Tube

This is a genuine vintage Sylvania 3BN6 Beam Type electronic tube in it's original box. This tube was developed for combined limiter, discriminator audio-voltage amplifier in early intercarrier television and FM receivers. A beam tube with a heater-cathode and three grids can be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

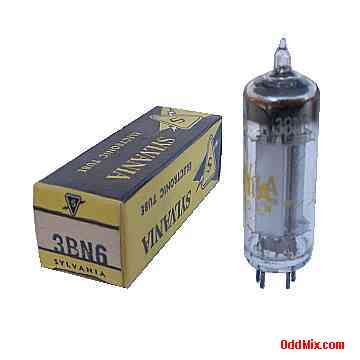

3BN6 Beam Amplifier Limiter Miniature Glass Sylvania Electronic Vacuum Tube [8 KB]


3BN6 Beam Electronic Tube
MFG: Sylvania Quality Made in USA
Limiter, dicriminator, amplifier
Heater: 3.15 V, 0.6 A
Plate Voltage: 330 Vmax - Limiter
Cathode Current: 13 mAmax - Limiter
Base: 7-pin miniature, all glass


NOS - [New Old Stock] tube Original box
Unused Price: $15 One available
S/H included within continental US
3BN6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Cathode Grid 1 Heater Heater Grid 2 Grid 3 Anode
