3BZ6 Semiremote Cutoff Pentode RF Amplifier Miniature Vacuum Tube

This is an original 3BZ6 Semiremote Cutoff Pentode electronic vacuum tube. It is a collector's special rare but fully functional antique device. This seven pin, all glass, miniature type used as RF or IF amplifier, usually in class-A configuration in many instruments, radio and television (TV) receivers. Excellent part for antique radio or television restoration. It is a NOS tube [New Old Stock], unused, boxed, excellent condition. One available.

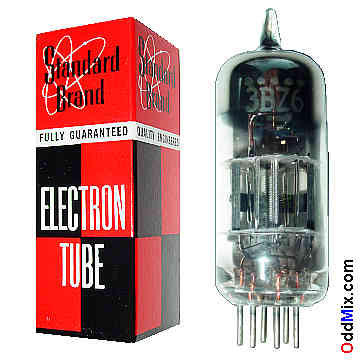

3BZ6 Semiremote Cutoff Pentode RF Amplifier Miniature Vacuum Tube [18 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

3BZ6 Semiremote Cutoff Pentode
• RF Amplifier - Class A
• Heater: 3.15 V, 0.6 A
• Plate: 330 Vmax 2.3 Wmax
• Base: 7-pin miniature, all glass • Collectible

Notes:

NOS - [New Old Stock] tube • Standard box
• Unused • Price: $12 • One available
S/H included within continental US
3BZ6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Grid 1 Cathode Heater Heater Anode Grid 2 Grid 3 IS
IS=Internal Shield
