OddMix IconOddMix VACUUM TUBE - 3DC3/3CU3A

3DC3/3CU3A Half-Wave High Voltage X-Ray Diode Rectifier GE Electronic Vacuum Tube

This is an original GE 3DC3/3CU3A Half-Wave Vacuum Rectifier electronic tube in original box. Applications for this tube is for high-voltage low-current half-wave rectifier applications, usually in television receivers or HV, HF equipments. This is a collectable vintage special vacuum tube. Useful for those antique radio or television restoration projects, high voltage project or to set up a private vacuum tube museum. It is a NOS tube - new old stock, unused, boxed, excellent condition.

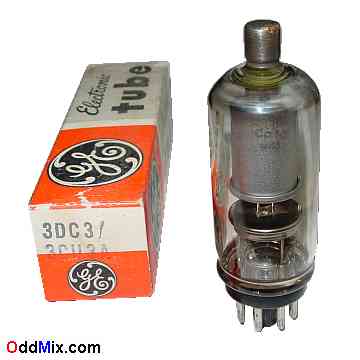

3DC3/3CU3A Half-Wave High Voltage 30 KV Diode Rectifier GE Electronic Vacuum Tube [10 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

3DC3/3CU3A Half-Wave Vacuum Rectifier Tube
MFG: GE Quality Made in USA
Pulsed Rectifier, HV, HF Rectifier
Heater: 3.150.5 V, 0.245 A - 1.5 pF
Plate: 38,000 Vmax, 100 mAmax - 2.0 mAavg
Base: 8-pin octal Collectible

Notes:

NOS - [New Old Stock] tube Original box
Unused Price: $15 One available
S/H included within continental US
3DB3 Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 CAP
Electrode F C F - - - - F C IC Anode
C=Cathode, F=Filament, IC=ICection - Do NOT Use
