3HQ5 High-Mu Triode Amplifier Miniature GE Electronic Vacuum Tube

This is an original GE 3HQ5 High-Mu Triode electronic tube. This tube was developed as an RF amplifier in VHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for replacement, antique radio restoration projects, experimetation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

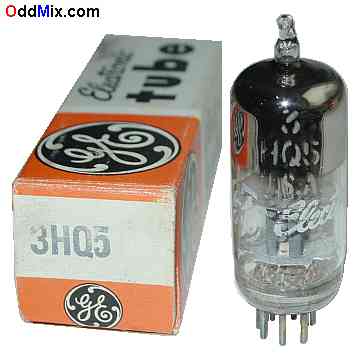

3HQ5 High-Mu Triode Amplifier Miniature GE Electronic Vacuum Tube [12 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

3HQ5 High-Mu Triode Electronic Tube
• MFG: GE • Quality Made in USA
Class A RF amplifier
• Heater: 2.4 V, 0.6 A
• Plate: 135 Vmax - 11.5 mAmax
• Base: 7-pin miniature, all glass • Collectible

Notes:

NOS - [New Old Stock] tube • Original box
• Unused • Price: $15 • One available
S/H included within continental US
3HQ5 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Grid 1 Cathode Heater Heater Anode Int Shield Cathode
