4BZ6 Semiremote Cutoff Pentode RF Amplifier Miniature Sylvania Zenith Vacuum Tube

This is an original Sylvania made for Zenith 4BZ6 Semiremote Cutoff Pentode electronic vacuum tube. This is a collector's special, rare, antique, radionic vacuum tube. This seven pin, all glass, miniature type used as RF or IF amplifier, usually in class-A configuration in many instruments, radio and television (TV) receivers. Excellent part for antique radio or television restoration, experimentation, circuit research or for rare tube collection. It is an NOS [New Old Stock] tube with box, unused.

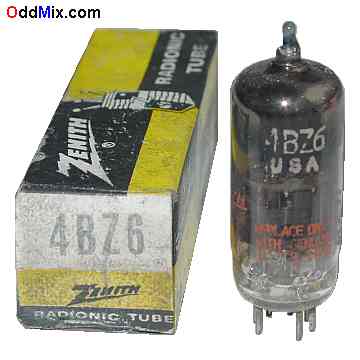

4BZ6 Semiremote Cutoff Pentode RF Amplifier Miniature Sylvania Zenith Vacuum Tube [12 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

4BZ6 Semiremote Cutoff Pentode Radionic Tube
• MFG: Sylvania • Quality Made in USA
• RF, AF Amplifier, Oscillator
• Heater: 4.2 V, 0.45 A
• Plate: 330 Vmax, 14 mAmax, 2.3 Wmax
• Base: 7-pin miniature, all glass • Collectible

Notes:

NOS - New Old Stock tube • Original box
• Unused • Price: $12 • One available
S/H included within continental US
4BZ6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Grid 1 Cathode Heater Heater Anode Grid 2 Grid 3
