OddMix IconOddMix VACUUM TUBE - 5AT8

5AT8 Medium-Mu Triode Sharp-Cutoff Pentode Oscillator Philco Electronic Vacuum Tube

This is an original Philco 5AT8 Medium-Mu Triode Sharp-Cutoff Pentode Electronic Tube. The 5AT8 was developed for oscillator and mixer color television applications with 40 MHz IF sections. The pentode part works well as an IF, video, AGC amplifier. The triode side works well for AM/FM oscillator circuits. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition. First come first serve, oneavailable!

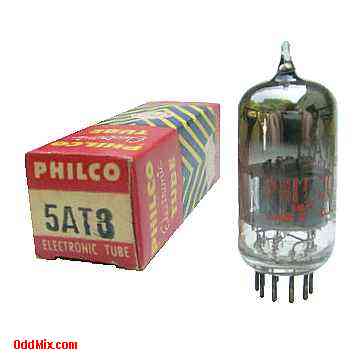

5AT8 Medium-Mu Triode Sharp-Cutoff Pentode Oscillator Philco Electronic Vacuum Tube [10 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

5AT8 Medium-Mu Triode, Sharp-Cutoff Pentode
MFG: Sylvania for Philco - Quality Made in USA
Oscillator, mixer, IF, video, Amplifier
Heater: 4.7 V, 0.6 A
Plate: 275 Vmax, 1.7 Wmax - Triode Class A
Plate: 275 Vmax, 2.3 Wmax - Pentode Class A
Base: 9-pin noval, all glass - Collectible

Notes:

NOS - New Old Stock tube - Original box
Unused Price: $25 One available
S/H included within continental US
5AT8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Grid 1 T Anode T Cathode Heater Heater Anode P Grid 2 Grid 3 Grid 1 P
