OddMix VACUUM TUBE - 5CL8A |
5CL8A Medium-Mu Triode Sharp-Cutoff Tetrode VHF GE Electron Tube

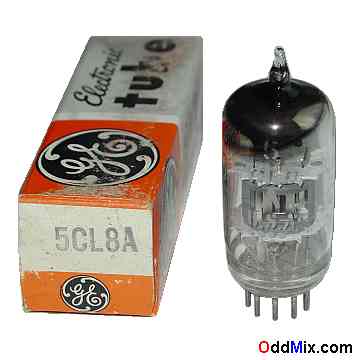

This is an original GE 5CL8A Medium-Mu Triode Sharp-Cutoff Tetrode electron tube. Used as VHF mixer oscillator in television receivers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 5CL8A Medium-Mu Triode, Sharp-Cutoff Tetrode • MFG: GE • Quality Made in USA • VHF mixer oscillator, RF, IF amplifier • Heater: 4.7 V, 0.36 A • Plate: 125 Vmax, 14/12 mAmax - Triode/Tetrode • Base: 9-pin noval, all glass - Collectible Notes: • NOS - New Old Stock tube • Original box • Unused • Price: $20 • One available • S/H included within continental US |
5CL8A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Grid-1 T | Anode T | Cathode T | Heater | Heater | Anode P | Grid-2 | Cathode P | Grid-1 P |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
