OddMix IconOddMix VACUUM TUBE - 5EA8

5EA8 Medium-Mu Triode Sharp-Cutoff Pentode GE Zenith Electronic Vacuum Tube

This is an original GE 5EA8 Medium-Mu Triode Sharp-Cutoff Pentode electronic tube. The 5EA8 was developed for color television applications. The pentode part applications included RF, IF, video, AGC, Class A amplifier or reactance tube. The triode side was designed to be used for low-frequency oscillator, sync-separator, sync-clipper or phase-splitter circuits. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

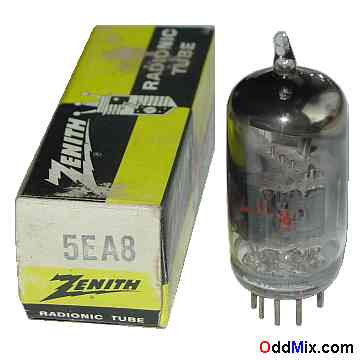

5EA8 Medium-Mu Triode Sharp-Cutoff Pentode GE Zenith Electronic Vacuum Tube [11 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

5EA8 Medium-Mu Triode, Sharp-Cutoff Pentode
MFG: GE for Zenith Quality Made in USA
RF, IF, Video, Class A Amplifier, Oscillator
Heater: 4.7 V, 0.6 A
Plate: 330 Vmax, 3.1 Wmax - Pentode Class-A
Plate Current: 18 mAmax, 12 mAmax - Triode, Pentode
Base: 9-pin noval, all glass - Collectible

Notes:

NOS - New Old Stock tube Original box
Unused Price: $25 One available
S/H included within continental US
5U8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode T Grid-1 P Grid-2 P Heater Heater Anode P Cath P, G3 Cathode T Grid-1 T
