5U8 Medium-Mu Triode Sharp-Cutoff Pentode Sylvania Electronic Vacuum Tube

This is a genuine, vintage, Sylvania 5U8 Medium-Mu Triode Sharp-Cutoff Pentode electronic tube in it's original box. The 5U8 was developed for oscillator and mixer color television applications with 40 MHz IF sections. The pentode part useable as an IF, video, AGC amplifier. The triode do well for AM/FM oscillator circuits. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

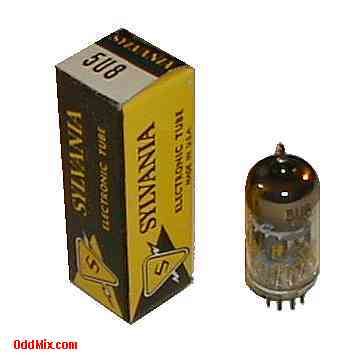

5U8 Medium-Mu Triode Sharp-Cutoff Pentode Sylvania Electronic Vacuum Tube [8 KB]


5U8 Medium-Mu Triode, Sharp-Cutoff Pentode
MFG: Sylvania Quality Made in USA
Oscillator, RF, IF, video, AGC Amplifier
Heater: 4.7 V, 0.6 A
Plate: 330 Vmax, 2.5 Wmax - Triode Class-A
Plate: 330 Vmax, 3 Wmax - Pentode Class-A
Plate Current: 9.5 mAmax - Pentode Class-A
Base: 9-pin Noval, all glass - Collectible


NOS - New Old Stock tube Original box
Unused Price: $20 One available
S/H included within continental US
5U8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode T Grid-1 P Grid-2 P Heater Heater Anode P Cath P, G3 Cathode T Grid-1 T
