5V6GT Beam Power Class A Amplifier Raytheon Electronic Vacuum Tube

This is a genuine, vintage, Raytheon 5V6GT Beam Power Type electronic tube in it's original box. A collector's special vacuum tube from the "Good Old Times". This tube is used most often as a class A output amplifier. Naturally a beam tube can be used for many other circuits like oscillators and RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum.

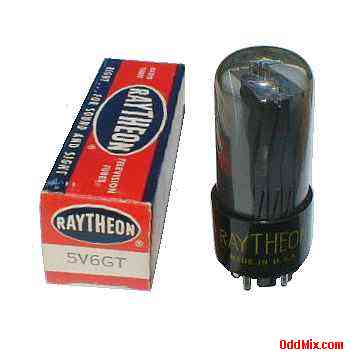

5V6GT Beam Power Class A Amplifier Octal Raytheon Electronic Vacuum Tube [10 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

5V6GT Electronic Beam Power Tube
MFG: Raytheon Quality Made in USA
Class A output amplifier, Audio amplifier
Heater: 4.7 V, 0.6 A
Plate: 180 Vmax
Plate: 30 mAmax 2 Wmax
Base: 8-pin octal, all glass - Collectible

Notes:

NOS - New Old Stock tube Original box
Unused Price: $25 One available
S/H included within continental US
5V6GT Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrodes Shield Heater Anode Grid-2 Grid-1 - Heater Cath G3
