6AC7 Sharp Cutoff Pentode Metal Haltron Electron Vacuum Tube Amplifier

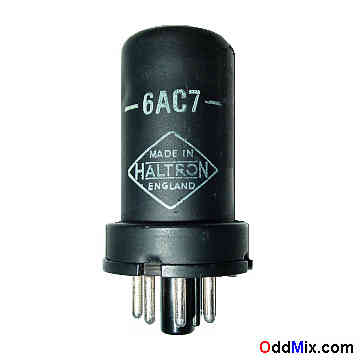

This is an original Haltron 6AC7 Sharp Cutoff Pentode electron tube. Metal type tube. Often used as RF or IF amplifier. Excellent part for replacement, antique radio, instrument, or television restoration, experimentation, circuit research or to set up a tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
![]() |
Features: • 6AC7 Sharp Cutoff Pentode - Discontinued • Class A Amplifier, Oscillator • MFG: Haltron - High quality Made in England • Heater: 6.3 V, 0.45 A • Plate: 300 Vmax, 10 mAmax • Base: 8-pin octal - Metal Tube Notes: • NOS - [New Old Stock] tube • Without box • Unused - Price: $50 - One available • S/H included within continental US |
6AC7 Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Electrodes | Shield, NC | Heater | Grid-3 | Grid-1 | Cathode | Grid-2 | Heater | Anode |
![]() |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
