6AK5 Sharp Cutoff Pentode RCA Radiotron RF Amplifier Oscillator Electron Vacuum Tube

This is an original RCA 6AK5 Sharp Cutoff Pentode electron tube in its original box. Miniature type used as RF or IF amplifiers in high-frequency wide-band applications up to 400 MHz. Excellent part for replacement, antique radio, instrument or television restoration, experimentation, circuit research or to set up a vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, excellent condition.

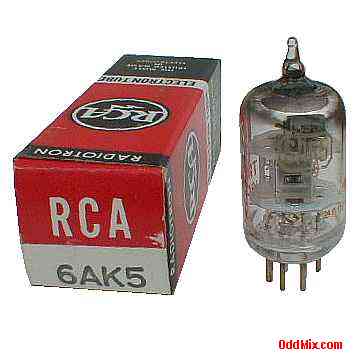

6AK5 Sharp Cutoff Pentode Amplifier Oscillator RCA Radiotron Electron Vacuum Tube [13 KB]


6AK5 Sharp Cutoff Pentode - RF
Class A Amplifier, Oscillator
MFG: RCA Radiotron - High quality Made in USA
Heater: 6.3 V, 0.175 A
Plate: 180 Vmax - 1.7 Wmax
Base: 7-pin miniature, all glass


NOS - [New Old Stock] tube Original box
Unused - Price: $20 - One available
S/H included within continental US
6AK5 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Grid-1 Cath G3 IS Heater Heater Anode Grid-2 Cath G3 IS
IS=Internal Shield
