6AK5 Sharp Cutoff Pentode RCA Radiotron RF Class A Amplifier Electron Vacuum Tube 2

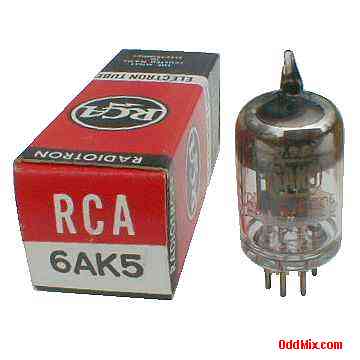

This is an original RCA 6AK5 Sharp Cutoff Pentode electron tube in its original box. Miniature type used as RF or IF amplifiers in high-frequency wide-band applications up to 400 MHz. Excellent part for replacement, antique radio, instrument or television restoration, experimentation, circuit research or to set up a vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, excellent condition.
![]() |
Features: • 6AK5 Sharp Cutoff Pentode - RF • Class A Amplifier, Oscillator • MFG: RCA Radiotron - High quality Made in USA • Heater: 6.3 V, 0.175 A • Plate: 180 Vmax - 1.7 Wmax • Base: 7-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $20 - One available • S/H included within continental US |
6AK5 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Electrodes | Grid-1 | Cath G3 IS | Heater | Heater | Anode | Grid-2 | Cath G3 IS |
IS=Internal Shield
![]() |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
