6AL5 Twin Diode High-Perveance Tungsram RF Detector Rectifier Electron Vacuum Tube

This is an original Tungsram 6AL5 High-Perveance Twin Diode with separate cathodes electron tube. Miniature type used as RF or IF detectors, signal rectifiers in high-frequency wide-band applications up to 400 MHz. Excellent part for replacement, antique radio, instrument or television restoration, experimentation, circuit research, radio amateur work or to set up a vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.

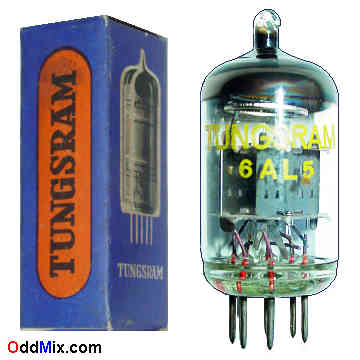

6AL5 Twin Diode High-Perveance Tungsram RF Detector Rectifier Electron Vacuum Tube [16 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

6AL5 Twin Diode High-Perveance - RF
SIgnal Detector, Rectifier
MFG: Tungsram - High quality Made in Hungary
Heater: 6.3 V, 300 mA
Plate: 330 Vmax pip - 9.0 mAmax DC
Base: 7-pin miniature, all glass

Notes:

NOS - [New Old Stock] tube Without box
Unused - Price: $20 - One available
S/H included within continental US
6AL5 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrodes Cath D1 Anode D1 Heater Heater Cath D2 Int Sh Anode D2
Int Sh=Internal Shield
