6BH6 Sharp Cutoff Pentode Philco RF Amplifier Miniature Electron Vacuum Tube

This is an original Philco 6BH6 Sharp Cutoff Pentode electron tube. Miniature type used as RF or IF amplifier in many AC/DC receivers and lightweight, compact, mobile equipment where low heater current is important. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

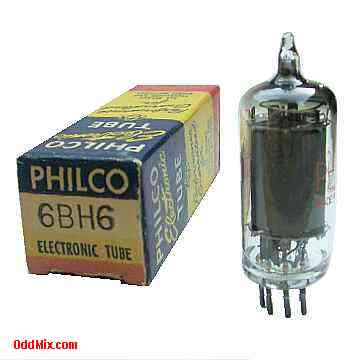

6BH6 Sharp Cutoff Pentode RF Amplifier Miniature Philco Electron Vacuum Tube [11 KB]


6BH6 Sharp Cutoff Pentode
MFG: Philco - High quality Made in USA
RF, IF, AF Amplifier, Oscillator
Heater: 6.3 V, 0.15 A
Plate: 300 Vmax - 3 Wmax
Base: 7-pin miniature


NOS - [New Old Stock] tube Original box
Unused - Price: $25 - One available
S/H included within continental US
6BH6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Grid-1 Cathode Heater Heater Anode Grid-2 Grid-3
