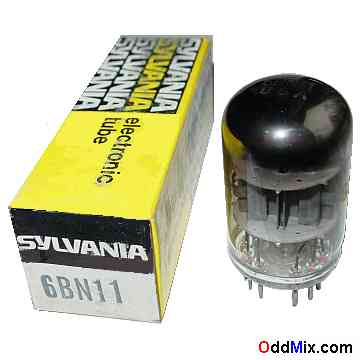

6BN11 Sharp-Cutoff Twin Pentode Class-A Amplifier Oscillator Sylvania Electronic Tube
This is a genuine, original Sylvania 6BN11 GE beam power tube, sharp-cutoff pentode electronic vacuum tube. Developed for Class A power amplifier, oscillator, other use. Excellent for those antique radio and television restoration, ham projects, transmitters, circuit design and development or to set up a private vacuum tube museum. It is NOS compactron tube - New Old Stock, unused, boxed, in good condition. First come first serve only one historical vacuum tube available!
Features: • 6BN11 Beam Power Tube, Sharp-Cutoff Pentode • MFG: Sylvania - High quality Made in USA • Class "A" Power Amplifier - Oscillator • Heater: 6.3 V, 0.8 A • Plate V: 330 Vmax - Class A • Plate Power: 3.1 Wmax each - Class A • Base: 12-pin all glass duodecar - Compactron Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $30 - One available • S/H included within continental US |
6BN11 Duodecar 12-pin Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Electrode | Heater | Cath P1 | G-1 P1 | G-2 P1 | Anode P1 | G-3 P1 | G-1 P2 | Cath P2 | G-2 P2 | G-3 P2 | Anode P2 | Heater |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
