OddMix IconOddMix VACUUM TUBE - 6BY6

6BY6 Pentagrid Amplifier Sylvania RF Amplifier Miniature Electronic Vacuum Tube

This is an original Sylvania 6BY6 Pentagrid Amplifier electronic tube. This tube was developed for gated amplifier in early television receivers. A vacuum tube with a heater-cathode and five grids can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

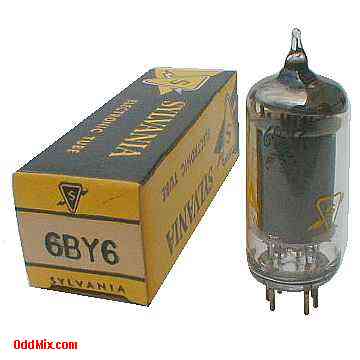

6BY6 Pentagrid Amplifier RF Amplifier Miniature Sylvania Electronic Vacuum Tube [11 KB]


6BY6 Pentagrid Amplifier
MFG: Sylvania - High quality Made in USA
RF Amplifier, Mixer, Oscillator
Heater: 6.3 V, 0.3 A
Plate: 250 Vmax - 6.5 mAmax - Class A
Base: 7-pin miniature, all glass


NOS - [New Old Stock] tube Original box
Unused - Price: $40 - One available
S/H included within continental US
6BY6 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode Grid-1 Cath G5 Heater Heater Anode G2 & G4 Grid-3
