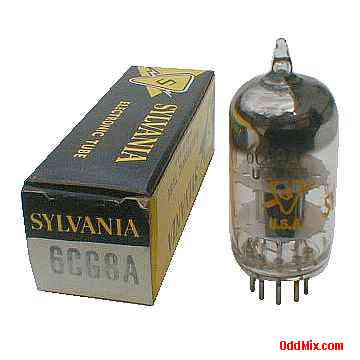

6CG8A Medium-Mu Triode Sharp-Cutoff Pentode Amplifier Sylvania Electronic Tube
This is an original Sylvania 6CG8A Medium-Mu Triode, Sharp-Cutoff Pentode electron Tube. It was developed for VHF oscillator and mixer color television applications with 40 MHz IF sections. The pentode part works well as an IF, video, AGC amplifier. The triode side works well for AM/FM oscillator circuits. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. First come first serve, only one of this rare, discontinued, historical vacuum tube available!
Features: • 6CG8A Medium-Mu Triode, Sharp-Cutoff Pentode • MFG: Sylvania - High quality Made in USA • RF, IF Class A Amplifier, Oscillator • Heater: 6.3 V, 0.45 A • Plate: 250250/ Vmax - 1.5/2.0 Wmax Triode/Pentode • Base: 9-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $20 - One available • S/H included within continental US |
6CG8A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Grid-1 T | Anode T | Cath G3 | Heater | Heater | Anode P | Grid-2 | Cath G3 | Grid-1 P |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
