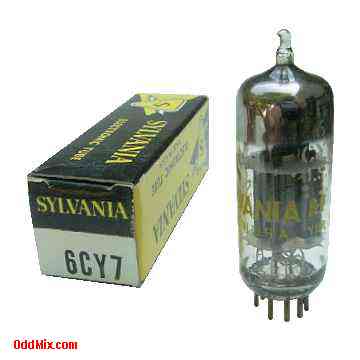

6CY7 Dual Triode Oscillator Amplifier Miniature Sylvania Electronic Vacuum Tube
The Sylvania 6CY7 Dual Triode is used for vertical deflection oscillator and amplifier in television receivers. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 6CY7 Dual Triode • MFG: Sylvania - High quality Made in USA • Triode 1 - High-mu, Triode 2 - Low-mu • Audio Oscillator - Amplifier • Heater: 6.3 V, 0.75 A • Anode: 250 Vmax, 1.2 mAmax - Unit 1 • Anode: 150 Vmax, 30 mAmax - Unit 2 • Base: 9-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $35 - One available • S/H included within continental US |
6CY7 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Anode T2 | IC | Grid-1T2 | Heater | Heater | Anode T1 | Grid-1T1 | Cath T1 | Cath T2 |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
