OddMix IconOddMix VACUUM TUBE - 6DK3/6DL3

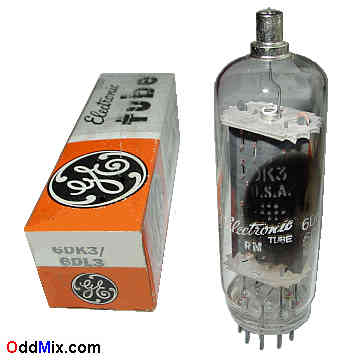

6DK3/6DL3 Half-Wave High Voltage Rectifier GE Electronic Vacuum Tube

This is an original GE 6DK3/6DL3 Half-Wave Vacuum Rectifier electronic tube. Used for high-voltage, high-current half-wave rectifier, damper applications, usually in television receivers or RF equipments. Excellent for spare part, antique radio or television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, excellent condition.
6DK3/6DL3 Half-Wave High Voltage Rectifier GE Electronic Vacuum Tube [12 KB]


6DK3/6DL3 Half-Wave Vacuum Rectifier
GE - High quality Made in USA
Pulsed Rectifier, Damper High Voltage
Heater: 6.3 V, 1.8 A
Plate: 6,500 Vmax, 1.200 mAmax - Peak
Plate: 9.0 Wmax - Damper Rectifier
Base: 9-pin + Cap, all glass


NOS - New Old Stock tube Original box
Unused - Price: $15 - One available
S/H included within continental US
6DK3 6DL3 Noval 9-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Grid-2 NC Grid-1 Heater Heater Grid-1 Cath G3 IC Anode
